SR-28 M E - Máy sấy công nghiệp Fagor

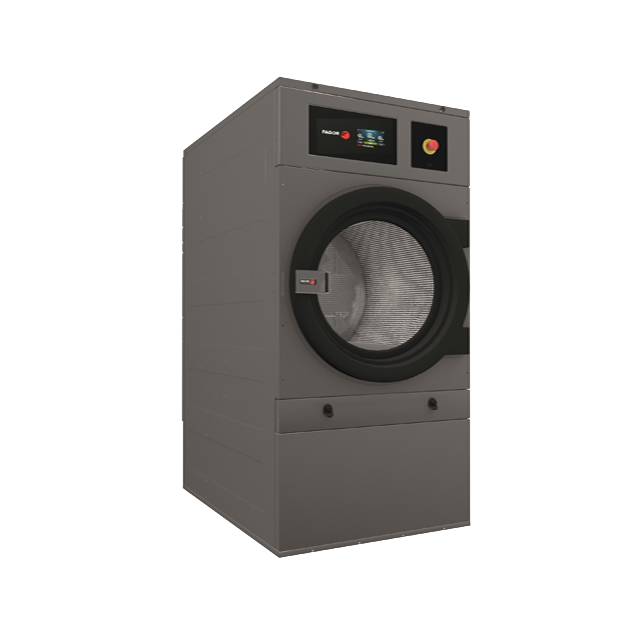

CONCEPT DRYER, SR-28 M E

KEY FEATURES:

01. MIXED FLOW

The new axial-radial mixed airflow of the Kare range increases efficiency throughout the wholedrying process thanks to improved airflow through the drum.

02. STAINLESS STEEL DRUM

The efficiently designed stainless steel drums in the Kare Concept, Advance and Advance Plus ranges provide superior quality and durability.

OPL SELF-SERVICE

The machines can be converted from OPL to Selfservice and vice versa from the Easy Control.

- Easy Control Processor (M) with time and temperature control.

- External steel casing with grey coating (skinplate), stainless steel, easy to clean finish.

- Stainless steel drum.

- Axial-radial airflow, resulting in greater drying efficiency.

- Drum with stamped perforations for the gentle treatment of fabrics.

- Lint filter at the bottom, more ergonomic, larger and improved airflow.

- Automatic reverse rotation of the drum.

- Frequency inverter for smoother operation.

- Ergonomic door with a large opening and the option of double glazing.

- Anti-wrinkle system.

- End of cycle tone.

- Emergency stop button and security micro magnet to stop operation.

- Pulley and Poly-V belt transmission system with the drum supported on wheels.

OPTIONS:

- Reverse opening door.

- Stainless steel casing.

- Stainless steel front.

- Wooden packaging.

- Air intake filter.

- Fluff filter.

- Double glazed door.

Placement of the door:

Door center height: 1040 mm

Door base height: 577 mm

Door opening diameter: 802 mm

* Drying conditions: complete loading (1/20) of towels, drying temperature 90ºC.

"** kg dry clothes per hour. Drying conditions: complete loading (1/20) of towels, drying temperature
